A9K-24X10GE-SE 24-Port 10GE Service Edge Optimized Line Card, requires SFP optics

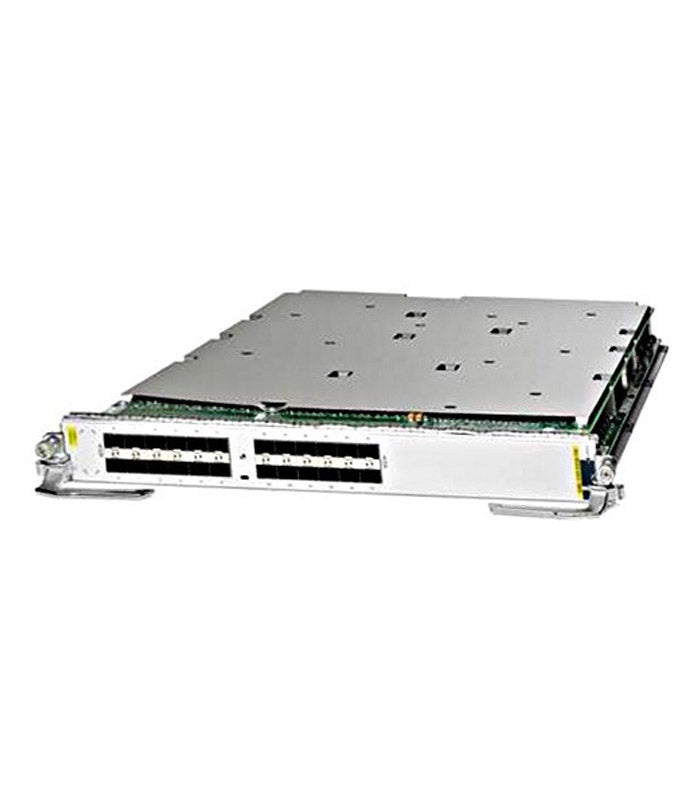

Cisco A9K-24X10GE-SE - 24-Port 10GE Service Edge Line Card

The Cisco A9K-24X10GE-SE is a high-density 10 Gigabit Ethernet line card engineered for the ASR 9000 Series Aggregation Services Routers. Designed for carrier-class deployments, this module delivers exceptional throughput, low latency, and advanced service capabilities across 24 SFP+ ports.

🔧 Key Features

• Port Density: 24x 10GE SFP+ interfaces (25G capable with SFP28 optics)
• Throughput: 240 Gbps full duplex
• Latency: <8μs in cut-through mode
• Power Efficiency: ~4.5W per port
• Advanced Capabilities: Hardware-accelerated MACsec (100Gbps), EVPN-VXLAN termination, Segment Routing (SRv6) readiness, precision timing support

🧩 Ideal Use Cases

• Service provider edge routing
• Enterprise core aggregation
• IPTV, VoD, and cloud service scaling
• High-performance data center interconnects

⚙️ Compatibility
Fully compatible with Cisco ASR 9000 Series chassis and IOS XR software. Supports flexible deployment with dual-rate 1G/10G optics and future-ready 25G upgrades.
