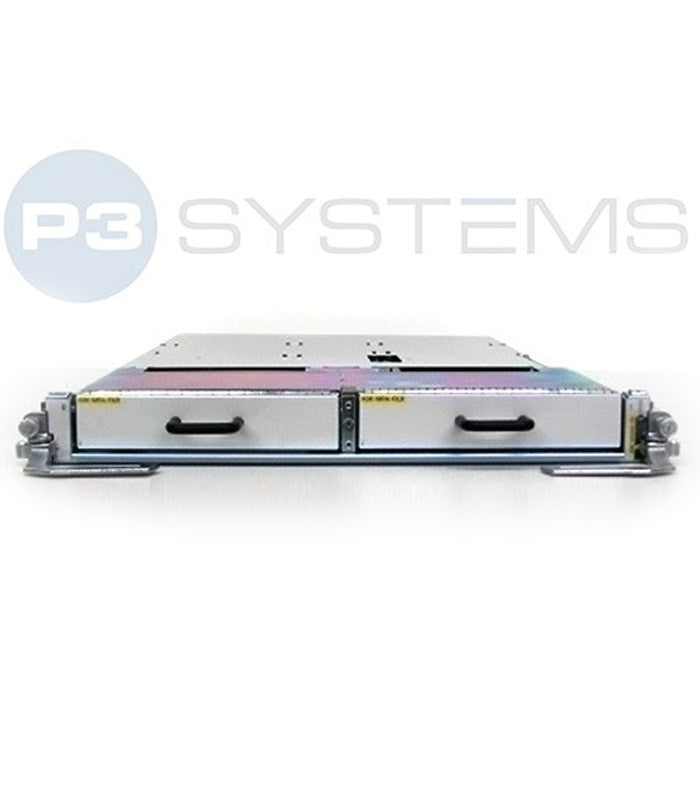

A9K-MOD80-SE Cisco ASR 9000 2 slot modular line card

Cisco A9K-MOD80-SE - 80G Modular Line Card (Service Edge Optimized)

The Cisco A9K-MOD80-SE is a modular line card for ASR 9000 Series routers, delivering 80 Gbps of forwarding capacity with advanced service edge capabilities. Designed for flexible interface deployment, it supports two Modular Port Adapter (MPA) slots and is ideal for scalable Ethernet services in edge and aggregation networks.

🔧 Key Features

• Capacity: 80 Gbps forwarding throughput
• Modularity: 2x MPA bays for customizable port combinations
• Queue Type: Service Edge (SE) for enhanced QoS and deep buffering
• Form Factor: Single-slot line card compatible with ASR 9000 chassis
• Physical Specs: 14.5" W x 1.72" H x 22.4" L; approx. 17.5 lbs

🧩 Ideal Use Cases

• Carrier-grade service edge routing
• Metro Ethernet aggregation
• IPTV and video service delivery
• Flexible interface deployments with investment protection

⚙️ Compatibility
Compatible with Cisco ASR 9000 Series chassis including ASR 9001, 9006, 9010, and 9922. Supports a wide range of MPAs including 10GE, 40GE, and 100GE variants.
