A9K-RSP880-TR Cisco A9K-RSP880-TR line card.

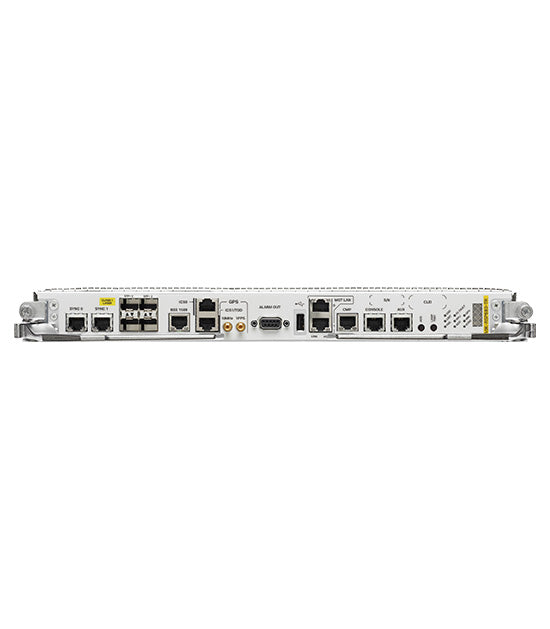

Cisco A9K-RSP880-TR - Route Switch Processor with 880G/Slot Fabric

The Cisco A9K-RSP880-TR is a top-tier Route Switch Processor (RSP) designed for ASR 9000 Series Aggregation Services Routers. It delivers exceptional control plane scalability, dual integrated switch fabrics, and carrier-grade resiliency for high-density service provider environments.

🔧 Key Features

• Fabric Capacity: 440 Gbps/slot with single RSP, 880 Gbps/slot with dual RSP
• Memory: 16 GB ECC DRAM, dual 16 GB SSDs, 8 GB embedded USB
• Interfaces: 4x 10GE SFP+ ports, 2x 1GE RJ45 ports, console and auxiliary ports
• Storage: Solid-state drives for logging and diagnostics
• Redundancy: Supports RSP redundancy for high availability
• Power Efficiency: Optimized for low power consumption in dense deployments

🧩 Ideal Use Cases

• Carrier Ethernet and MPLS edge
• Layer 2/3 VPN services
• IPTV, VoD, and cloud-scale routing
• High-availability service provider infrastructure

⚙️ Compatibility
Works with Cisco ASR 9000 Series chassis including ASR 9006, 9010, 9904, 9910, and 9906. Compatible with all modular line cards and MPAs in the ASR 9K ecosystem.
