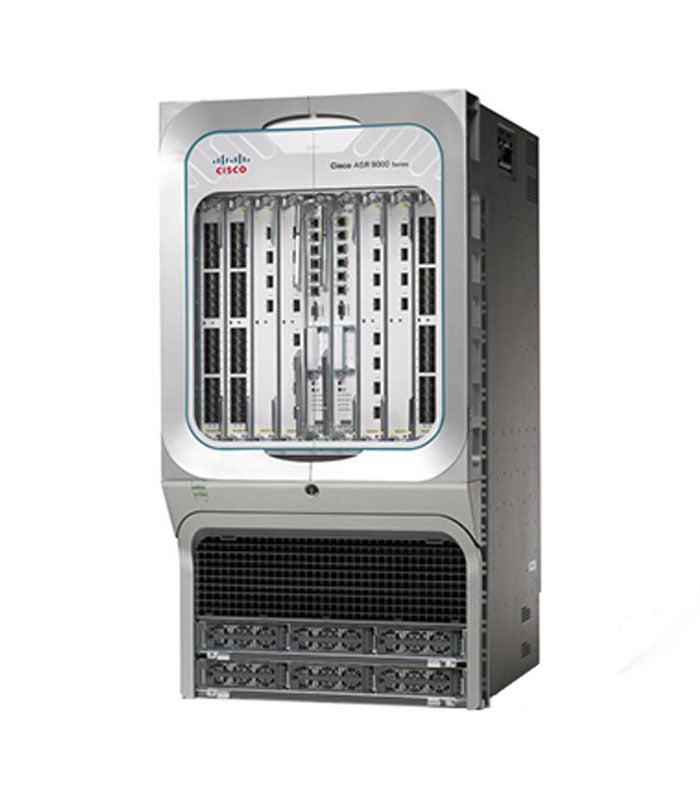

ASR-9010-AC-V2 Cisco Aggregation Service Router 9000 Series 10-Slot Chassis

Cisco ASR-9010-AC-V2 - ASR 9010 Aggregation Services Router (AC Power, Version 2)

The ASR-9010-AC-V2 is part of Cisco’s ASR 9000 Series, engineered for carrier-grade reliability and scalability. With a 10-slot chassis and support for Cisco IOS XR, it delivers exceptional performance for dense IP/MPLS routing, Metro Ethernet, and advanced services.

🔧 Key Specifications

• Chassis Slots: 10 total (2 for Route Switch Processors, 8 for Line Cards)
• Performance: Max capacity up to 14 Tbps
• Form Factor: 21RU rack-mountable
• Interfaces: Supports 1GE, 10GE, 40GE, and 100GE via modular line cards
• Operating System: Cisco IOS XR
• Redundancy: Supports redundant RSPs, fan trays, and AC power supplies
• Power Supply: Dual AC power modules (hot-swappable)
• Management: Console, auxiliary, and management Ethernet ports
• Environmental: NEBS-compliant, ETSI-compliant
• Dimensions: Approx. 36.75 x 17.5 x 29 inches
• Weight: Approx. 156lbs (chassis w/ PEM), 232lbs (fully configured)

🧩 Ideal Use Cases

• Service provider edge and core routing
• Metro Ethernet aggregation
• High-density IP/MPLS deployments
• Environments requiring full hardware redundancy and scalability

⚙️ Licensing & Expansion
The ASR-9010-AC-V2 supports a wide range of line cards and RSPs for flexible deployment. Advanced services such as L2VPN, L3VPN, multicast, segment routing, and EVPN are supported with appropriate licensing.
