ASR1001X-5G-VPN ASR1001-X 5G VPN Bundle K9 AES Built-in 6x1G

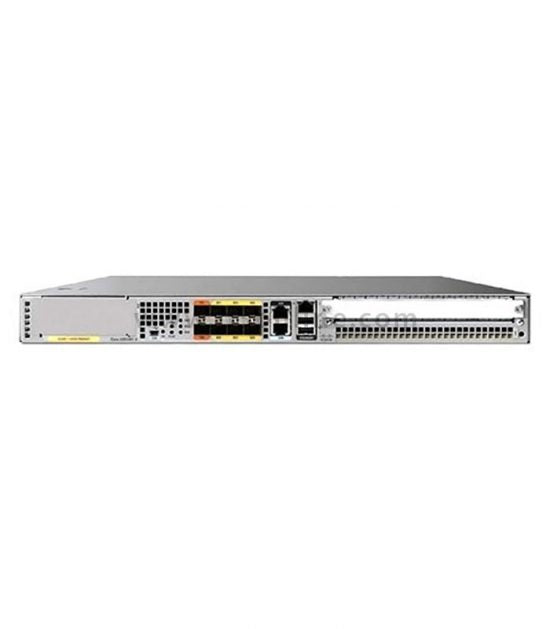

Cisco ASR1001X-5G-VPN - Aggregation Services Router with 5 Gbps VPN License

The Cisco ASR1001X-5G-VPN is a compact, high-performance router in the ASR 1000 Series. This bundle includes the ASR1001-X hardware with a 5 Gbps throughput license and VPN feature set, making it ideal for enterprises and service providers that require secure, scalable WAN edge services.

🔧 Key Specifications

• Throughput: 5 Gbps (upgradeable via additional licenses up to 20 Gbps)
• Form Factor: 1RU rack-mountable
• Processor: Cisco Quantum Flow Processor (QFP) for scalable service performance
• Interfaces:
  • 6x built-in Gigabit Ethernet ports
  • 2x built-in 10-Gigabit Ethernet ports (SFP+)
  • 1 NIM and 1 SPA slot for modular interface expansion
• Memory & Storage: 8 GB DRAM (expandable to 16 GB); 8 GB flash
• Redundancy: Hardware and software high-availability features supported
• Power Supply: Dual redundant AC or DC options
• Cooling: Front-to-back airflow for data center compatibility
• Operating System: Cisco IOS XE

🧩 Ideal Use Cases

• Secure WAN edge with IPsec VPN aggregation
• Enterprise branch or HQ requiring 5 Gbps encrypted throughput
• Service provider edge deployments with scalable VPN services
• Environments needing compact, high-capacity routing with modular expansion

⚙️ Licensing & Expansion

• Includes 5 Gbps performance license and VPN feature set.
• Additional throughput licenses available to scale up to 20 Gbps.
• SPA slot allows flexible interface expansion for evolving connectivity needs.
