ASR1002-F ASR1002 Fixed Configuration Router

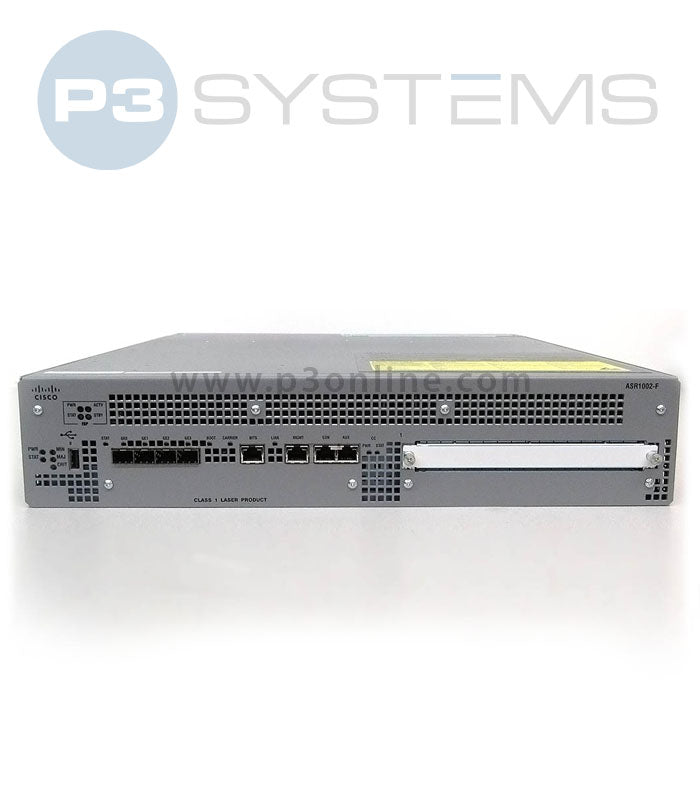

Cisco ASR1002-F - Fixed Aggregation Services Router

The Cisco ASR1002-F is a compact, fixed-configuration router in the ASR 1000 Series. It delivers high-performance routing, integrated services, and carrier-grade reliability in a 2RU form factor. With built-in interfaces and simplified deployment, it’s ideal for WAN aggregation, secure VPN termination, and advanced traffic management at the enterprise or service-provider edge.

🔧 Key Specifications

• Throughput: Up to 40 Gbps (license dependent)
• Form Factor: 2RU rack-mountable, fixed configuration
• Processor: Cisco Quantum Flow Processor (QFP) for scalable service performance
• Interfaces:
  • 4x built-in Gigabit Ethernet ports (SFP)
  • 1x SPA for modular interface expansion
• Memory & Storage: 8 GB DRAM (expandable); 8 GB flash
• Redundancy: Hardware and software high-availability features supported
• Power Supply: Dual redundant AC or DC options
• Cooling: Front-to-back airflow for data center compatibility
• Operating System: Cisco IOS XE

🧩 Ideal Use Cases

• Enterprise WAN edge aggregation with simplified deployment
• High-performance IPsec VPN termination
• Secure, policy-driven traffic management
• Service provider edge deployments needing fixed, reliable connectivity

⚙️ Licensing & Expansion

• Runs Cisco IOS XE with feature licensing for advanced services (e.g., MPLS, security, application visibility).
• Fixed interface design simplifies deployment but limits modular expansion compared to SIP/SPA-based models.
• Throughput can be scaled with performance licenses.
