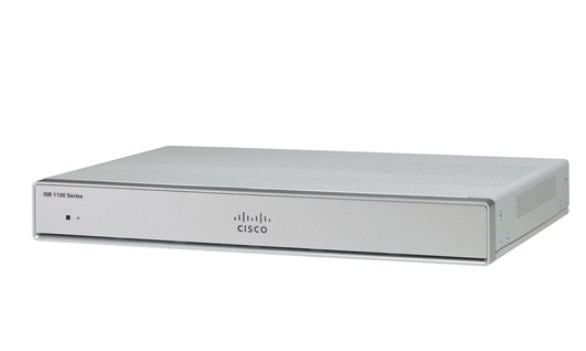

C1112-8P Integrated Services Router with 8 Gb ports and G FAST DSL WAN

Cisco C1112-8P - Integrated Services Router with LTE and PoE

The Cisco C1112-8P is part of the Cisco 1100 Series ISR family, delivering enterprise-class networking in a compact desktop or rack-mountable form factor. With integrated LTE Advanced connectivity and eight PoE/PoE+ capable Gigabit Ethernet LAN ports, it simplifies branch deployments by combining WAN, wireless, and LAN services in a single device.

🔧 Key Specifications

• WAN Interfaces:
  • 1x RJ45/SFP combo Gigabit Ethernet WAN port
  • 1x G FAST DSL (Annex B)
• LAN Interfaces: 8x 10/100/1000 Gigabit Ethernet LAN ports with PoE/PoE+ support
• PoE Budget: Up to 120W (model dependent)
• Throughput: Up to 150 Mbps (IPsec VPN throughput with AES 256)
• Routing Performance: Optimized for secure WAN, SD-WAN, and advanced services
• Integrated Security: Cisco IOS XE with Zone-Based Firewall, VPN, and advanced threat defense
• Management: Cisco DNA Center, CLI, web-based UI, and zero-touch provisioning
• Form Factor: Compact desktop or rack-mountable (1RU with bracket)
• Power: Internal AC power supply with PoE support
• Dimensions (W x D x H): 12.7 x 10.1 x 1.7 in. (32.3 x 25.7 x 4.4 cm)
• Weight: ~6.5 lbs (2.95 kg)
• Operating System: Cisco IOS XE

🧩 Ideal Use Cases

• Branch offices requiring LTE backup or primary WAN connectivity
• Deployments needing integrated PoE for IP phones, APs, and cameras
• Secure VPN gateway for remote offices with cellular failover
• Small business or retail environments needing all-in-one WAN, LAN, and LTE

⚙️ Licensing & Expansion

• Runs Cisco IOS XE with perpetual or subscription licensing for advanced features (e.g., SD-WAN, security, application visibility).
• Supports Cisco DNA Center for centralized management and automation.
• LTE modem provides resilient WAN connectivity with carrier flexibility.
