C9130AXE-E Indoor WiFi6 AP with External Ant. (EU Regulatory Domain)

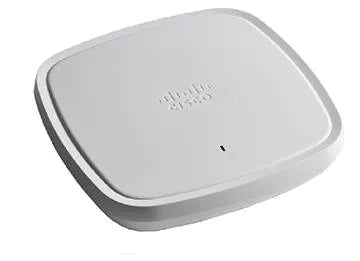

Cisco C9130AXE-E - Catalyst 9130AX Series Access Point

The Cisco Catalyst C9130AXE-E is part of the flagship 9130AX Series, delivering the most advanced Wi-Fi 6 features with 8x8:8 MU-MIMO on 5 GHz and 4x4:4 MU-MIMO on 2.4 GHz. With external antenna support, it provides maximum flexibility for coverage shaping in challenging RF environments.

🔧 Key Specifications

• Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
• Radios:
  • 5 GHz: 8x8:8 MU-MIMO
  • 2.4 GHz: 4x4:4 MU-MIMO
• Antenna Type: External (requires separate antennas)
• Maximum Data Rate: Up to ~5.38 Gbps aggregate throughput
• Ports:
  • 1x Multigigabit Ethernet (mGig) port (5G/2.5G/1G)
  • 1x 100/1000 Ethernet port
• PoE Requirement: 802.3at (PoE+) recommended; 802.3bt for full feature set
• Security: WPA3, Cisco Trustworthy Solutions, secure boot, hardware-based encryption
• Management: Cisco DNA Center, Catalyst 9800 Series Wireless Controllers, CLI, APIs
• Advanced Features:
  • CleanAir Pro for RF interference detection and mitigation
  • Flexible Radio Assignment (dual 5 GHz mode for high density)
  • OFDMA and BSS Coloring for efficiency in dense environments
  • IoT readiness with integrated BLE and Zigbee (with dongle)

🧩 Ideal Use Cases

• High-density enterprise WLANs (stadiums, arenas, auditoriums, large campuses)
• Deployments requiring custom antenna placement for coverage optimization
• Mission-critical environments needing maximum client capacity and RF intelligence
• Organizations adopting Cisco DNA and SD-Access architectures
