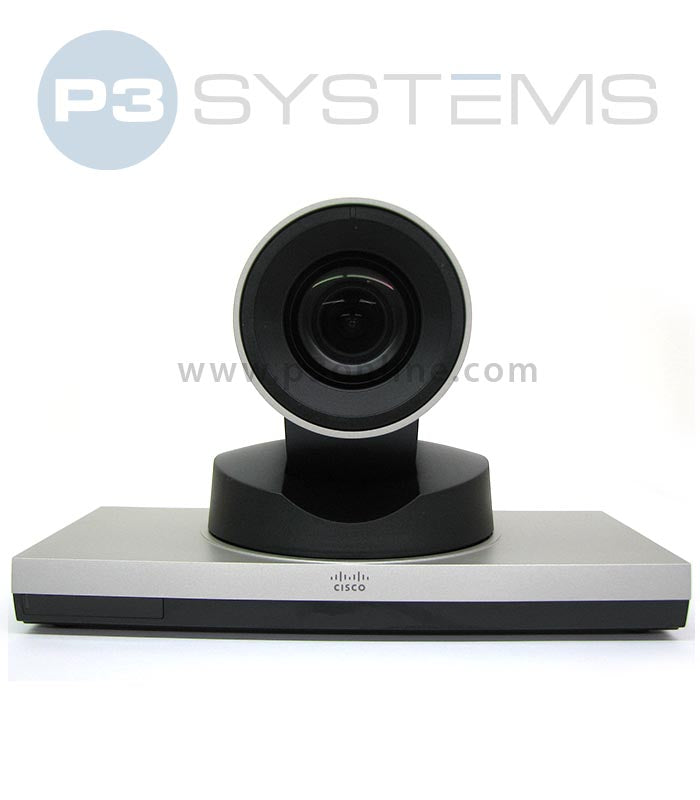

CTS-PHD-1080P12XS Cisco TelePresence 1080p HD Camera w/ 12x optical zoom (silver)

CTS-PHD-1080P12XS - Cisco TelePresence PrecisionHD Camera 1080p 12× (Silver)

The Cisco CTS-PHD-1080P12XS delivers premium high-definition video performance tailored for professional videoconferencing and collaboration environments. With true 1080p resolution at up to 60 fps and a 12× optical zoom lens, this camera is engineered for boardrooms, lecture halls, and other high-end meeting spaces seeking impeccable clarity and flexibility.

🔧 Key Specifications

• Resolution: 1920 × 1080 progressive at 60 fps (HDMI output). (Cisco)

• Optical Zoom: 12×. (Cisco)

• Pan / Tilt Range: ±100° pan, -25° to +15° tilt (motorized). (Cisco)

• Field of View: ~72° horizontal, ~43.5° vertical. (Cisco)

• Focus Distance: 0.3 m to infinity. (Cisco)

• Aperture (F-value): f/1.7. (Cisco)

• Video Outputs: HDMI and HD-SDI (daisy-chain support) in addition to camera control output. (Cisco)

• Mounting Options: Supports upside-down mounting (automatic image flip) for ceiling installations. (Cisco)

• Form Factor / Dimensions: Approx. length 8.35 in (212 mm) × depth 5.45 in (138 mm) × height at max tilt ~6.8 in (172 mm). Weight approx. 1.8 kg (3.95 lb). (Cisco)

• Compatibility: Designed for use with Cisco TelePresence systems and codecs (e.g., SX20, etc.).

🧩 Ideal Use Cases

• Large meeting rooms or boardrooms where participants are seated at a distance and require a long-zoom lens to capture full room views or focus on a speaker.

• Professional video conferencing applications requiring full HD 1080p at 60fps for smooth motion and high-detail presentation content.

• Flexible integration environments (e.g., ceiling mount, upside down mount) where the camera must adapt to room constraints while maintaining image orientation.

• High-end collaboration systems within enterprise, academic, or tele-health settings requiring premium optics and control capabilities.
