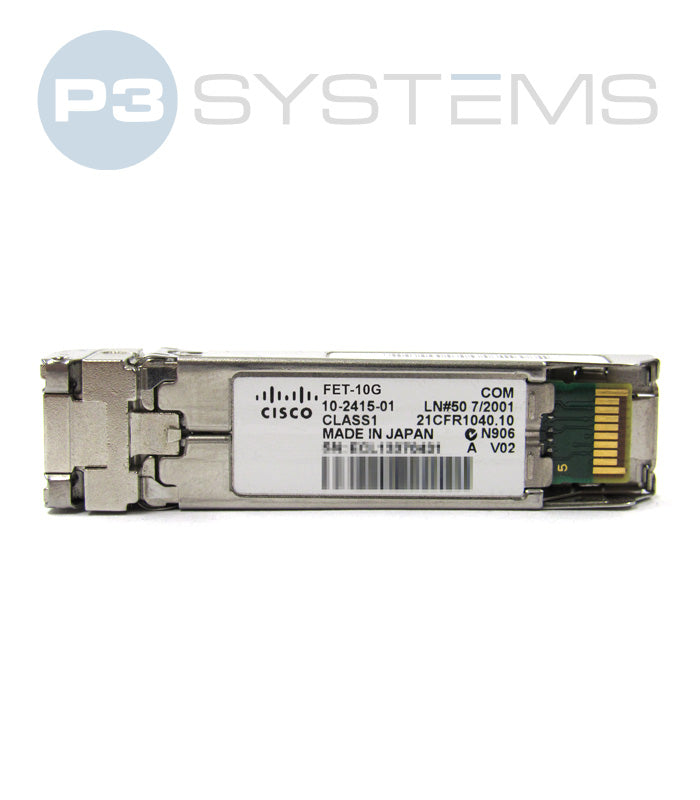

FET-10G Cisco FET-10G Fabric Extender Transceiver

Cisco FET-10G - Overview

The Fabric Extender Transceiver (FET-10G) is optimized for Cisco’s Nexus 2000 Series Fabric Extenders and their parent Nexus switches. Unlike standard 10GBASE-SR optics, the FET-10G is only supported for FEX uplinks and not for general 10G SR links.

🔧 Key Specifications

• Form Factor: SFP+ (hot-swappable)
• Standard: Cisco proprietary (similar to 10GBASE-SR but FEX-specific)
• Wavelength: 850 nm (multimode optics)
• Connector: Duplex LC
• Reach:
  • Up to 300 m on OM3 MMF
  • Up to 400 m on OM4 MMF
• Data Rate: 10 Gbps line rate
• Compatibility:
  • Cisco Nexus 2000 Series Fabric Extenders
  • Cisco Nexus 5000/7000/9000 Series parent switches (for FEX uplinks)
• Hot-Swappable: Yes, without disrupting system operation

🧩 Ideal Use Cases

• Fabric Extender (FEX) uplinks from Nexus 2000 to parent Nexus switches
• Data center top-of-rack deployments where FEX architecture is used
• Short-range 10G connectivity in Cisco-only environments
