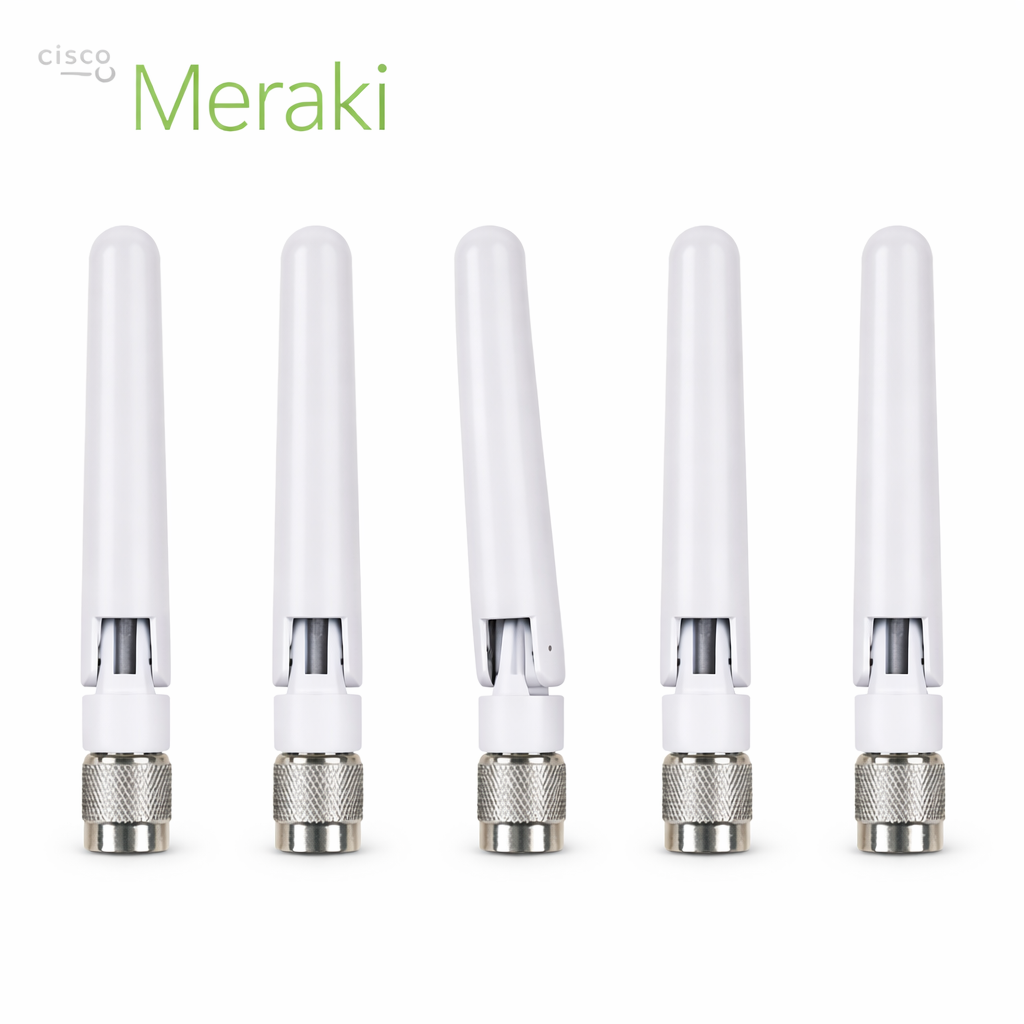

MA-ANT-3-B5 Meraki Indoor Bendable Dual-band Dipole Ant 5pk for MR42E.

Cisco Meraki MA-ANT-3-B5 - Dipole Antenna (5-Pack)

The Cisco Meraki MA-ANT-3-B5 is a dual-band dipole antenna designed for Meraki MR42E access points. Sold in a convenient 5-pack, it provides reliable omnidirectional coverage in both 2.4 GHz and 5 GHz bands. Its bendable form factor makes it ideal for low-ceiling or wall-mounted deployments where flexible positioning and consistent signal penetration are required.

🔧 Key Specifications

• Antenna Type: Dipole
• Frequency Range: 2.400-2.500 GHz / 5.150-5.875 GHz
• Gain: 3 dBi (2.4 GHz) / 5.7 dBi (5 GHz)
• Polarization: Linear, vertical/horizontal
• Beamwidth (Horizontal): Omni
• Beamwidth (Vertical): 40°
• Connector: RP-TNC
• Dimensions: 3.51” x 0.57” (89.3 mm x 14.5 mm)
• Weight: 0.71 oz (20.19 g)
• Material: PC-ABS durable plastic
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Humidity Range: 5% to 95% non-condensing
• Warranty: 1-year hardware warranty included

🧩 Ideal Use Cases

• Low-density deployments such as schools, hotels, or hospitality venues
• Wall-mounted or uneven surface installations requiring flexible antenna positioning
• Branch or distributed environments needing basic dual-band connectivity
• Cost-effective deployments where a 5-pack bundle simplifies inventory and installation
