NIM-ES2-8-P 8-port PoE/PoE Layer 2 Gigabit Ethernet LAN Switch NIM

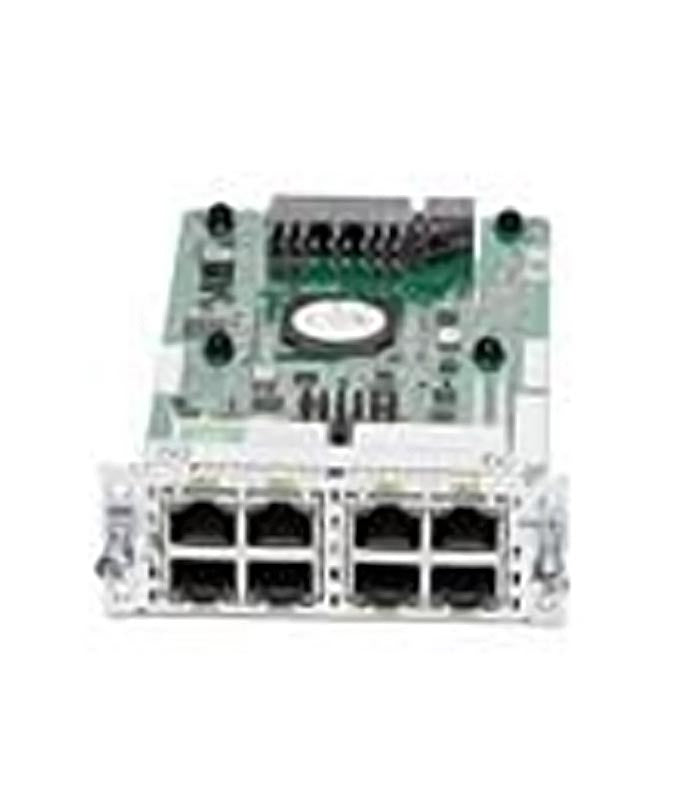

Cisco NIM-ES2-8-P - 8-Port Gigabit Ethernet Switch Module with PoE

The Cisco NIM-ES2-8-P is an 8-port Gigabit Ethernet switch module with Power over Ethernet (PoE) support, designed for Cisco ISR 4000 Series routers. It provides integrated Layer 2 switching capabilities and the ability to power IP phones, cameras, and other PoE-enabled devices directly from the router chassis. This module is ideal for branch offices that need compact, flexible, and cost-effective Ethernet expansion with built-in PoE.

🔧 Key Specifications

• Model: NIM-ES2-8-P
• Interfaces:
  • 8x Gigabit Ethernet RJ45 copper ports with PoE support
• Compatibility: Cisco ISR 4000 Series routers
• Speed: 10/100/1000 Mbps auto-negotiation
• Features:
  • Integrated Layer 2 switching functionality
  • IEEE 802.3af/at PoE support (up to 30W per port)
  • VLAN support (IEEE 802.1Q)
  • QoS and traffic prioritization
  • Hot-swappable module
  • Centralized management via Cisco IOS XE
• Form Factor: Network Interface Module (NIM)
• Dimensions: Standard NIM slot size for ISR 4000 chassis
• Power: Draws power from host router; PoE budget dependent on router power supply

🧩 Ideal Use Cases

• Branch offices needing additional LAN connectivity with PoE for IP phones and cameras
• Enterprises requiring VLAN segmentation and QoS at the branch level
• Compact deployments where space and cost efficiency are critical
• Organizations seeking modular, scalable router interfaces with integrated PoE

⚙️ Licensing & Expansion
The NIM-ES2-8-P requires a compatible Cisco ISR 4000 router chassis. No additional license is required beyond the router’s software feature set.
