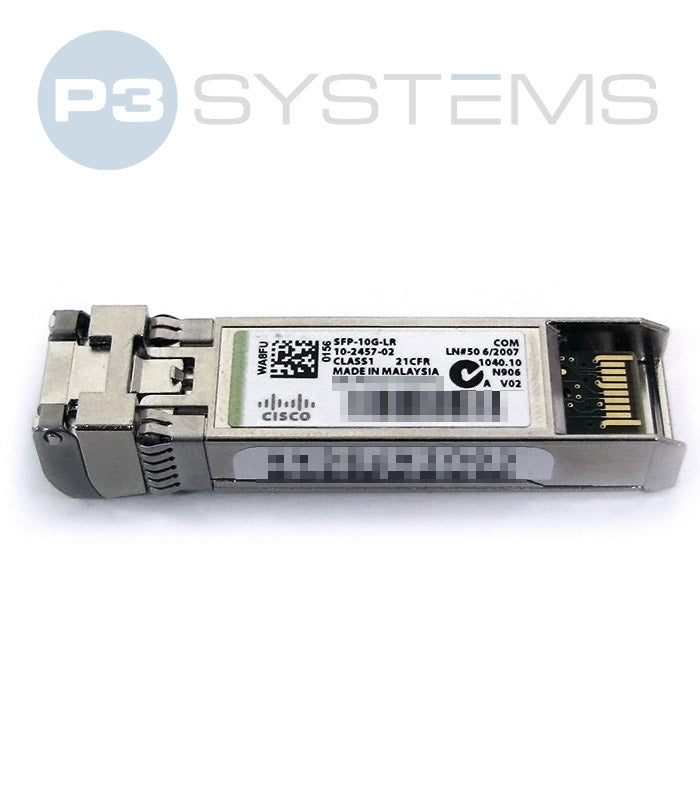

SFP-10G-LR Cisco 10GBASE LR Transceiver Module for SMF

Cisco SFP-10G-LR - 10GBASE-LR SFP+ Module

The Cisco SFP-10G-LR is a 10 Gigabit Ethernet transceiver designed for long-reach applications over single-mode fiber. Supporting distances up to 10 km, it is ideal for enterprise backbones, service provider networks, and data center interconnects requiring reliable high-speed connectivity.

🔧 Key Specifications

• Type: 10GBASE-LR SFP+ transceiver
• Data Rate: 10 Gbps
• Transmission: Long-reach single-mode fiber (SMF)
• Wavelength: 1310 nm
• Maximum Distance: Up to 10 km over SMF
• Connector: LC duplex
• Form Factor: Hot-swappable SFP+
• Digital Optical Monitoring (DOM): Supported
• Operating Temperature: Standard range (0°C to 70°C)
• Compatibility: Cisco switches and routers supporting SFP+ ports
• Standards: IEEE 802.3ae 10GBASE Ethernet compliant

🧩 Ideal Use Cases

• Enterprise backbone connectivity across campuses
• Service provider metro and access networks
• Data center interconnects requiring 10 km reach
• High-bandwidth applications over single-mode fiber

⚙️ Benefits
The SFP-10G-LR provides cost-effective long-distance 10G Ethernet connectivity with simple deployment. Hot-swappable design ensures easy installation and replacement with minimal downtime.
