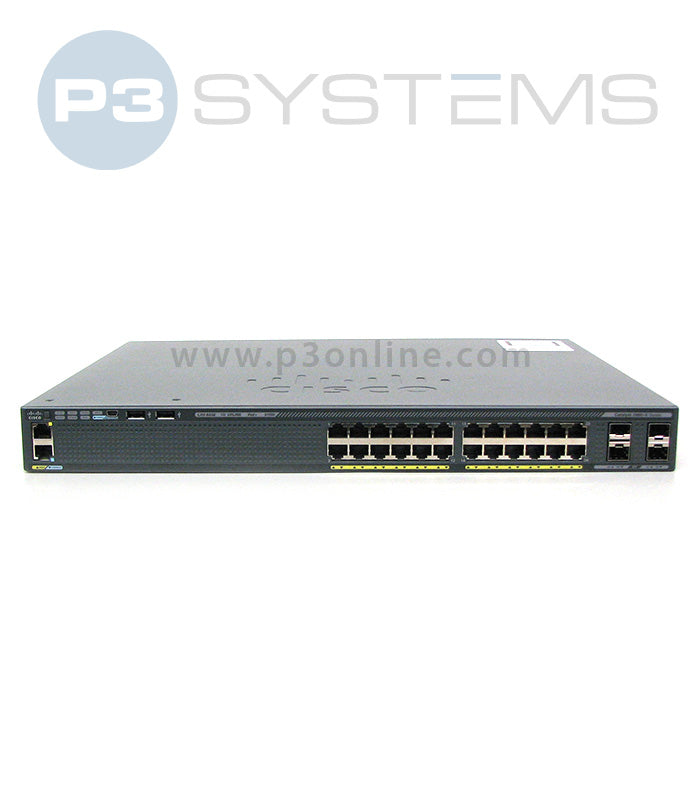

Cisco WS-C2960X-24TS-LL - Catalyst 2960-X 24-Port Gigabit Switch (LAN Lite)
The Cisco WS-C2960X-24TS-LL is a cost-effective Gigabit Ethernet switch designed for small to medium-sized business networks and branch offices. With 24 non-PoE ports, four uplinks, and LAN Lite software, it provides reliable connectivity, simplified management, and essential security features in a compact form factor.
🔧 Key Specifications
- Ports: 24x Gigabit Ethernet RJ45 ports (non-PoE)
- Uplinks: 2x Gigabit SFP uplink ports
- Switching Capacity: 100 Gbps
- Forwarding Rate: 68.5 Mpps
- Software: Cisco IOS LAN Lite image (basic Layer 2 features)
- VLAN Support: Up to 255 VLANs
- Stacking: Not supported (LAN Lite SKU)
- Memory: 256 MB RAM, 64 MB Flash
- Security: Port security, basic ACLs, DHCP snooping
- Dimensions: 1.75 x 11.0 x 17.5 in (1RU rack-mountable)
- Weight: Approx. 8.2 lb
- Power Supply: Internal fixed AC power supply
- Reliability: Fanless design for quiet operation in office environments
🧩 Ideal Use Cases
- Small business LAN access without PoE requirements
- Branch office deployments needing secure and affordable connectivity
- Networks requiring basic VLAN segmentation and Layer 2 switching
- Cost-conscious environments where stacking and advanced routing are not required
⚙️ Licensing & Expansion
The WS-C2960X-24TS-LL runs Cisco IOS LAN Lite software, offering simplified management and essential Layer 2 features. It supports up to 255 VLANs and four Gigabit SFP uplinks for flexible connectivity. Unlike LAN Base models, stacking and advanced Layer 3 routing are not available.
