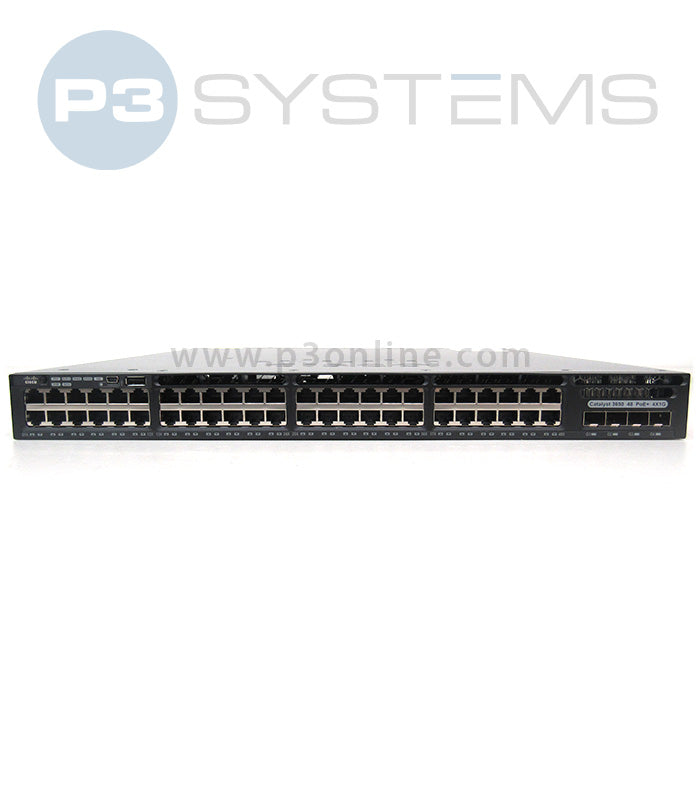

WS-C3650-48TQ-S Cisco WS-C3650-48TQ-S 48 port layer 3 switch

Cisco WS-C3650-48TQ-S - Catalyst 3650 48-Port Gigabit Switch with 4x10G Uplinks

The Cisco WS-C3650-48TQ-S is an enterprise-class, stackable Gigabit Ethernet switch that integrates wired and wireless services on a single platform. With 48 non-PoE Gigabit ports and four 10G uplinks, it delivers secure connectivity, advanced security, and scalable management for modern business networks.

🔧 Key Specifications

• Ports: 48x Gigabit Ethernet RJ45 ports (non-PoE)
• Uplinks: 4x 10G SFP+ uplink ports
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.95 Mpps

• Stacking: Supports Cisco StackWise-160 technology (up to 9 switches, 160 Gbps stack bandwidth)
• Memory: 4 GB RAM, 2 GB Flash
• VLAN Support: Up to 4094 VLAN IDs
• Layer Features: Advanced Layer 2 switching, basic Layer 3 routing (LAN Base)
• Security: Port security, DHCP snooping, dynamic ARP inspection, ACLs, TrustSec
• Dimensions: 1.73 x 17.5 x 17.625 in (1RU rack-mountable)
• Weight: Approx. 15.15 lb

• Power Supply: Dual redundant, hot-swappable power supplies supported
• Reliability: Hot-swappable uplink modules, StackWise resiliency, redundant fans

🧩 Ideal Use Cases

• Enterprise LAN access where PoE is not required (desktop PCs, servers, printers)
• Distribution or core layer deployments requiring high-performance 10G uplinks
• Unified wired and wireless management with integrated controller functionality
• Secure VLAN segmentation and Layer 2/3 access control for business-critical networks

⚙️ Licensing & Expansion
The WS-C3650-48TQ-S runs Cisco IOS XE software with LAN Base features, supporting advanced Layer 2 switching and basic Layer 3 routing. Expansion is enabled through four 10G uplinks and StackWise-160 technology, allowing seamless scalability and simplified administration.
