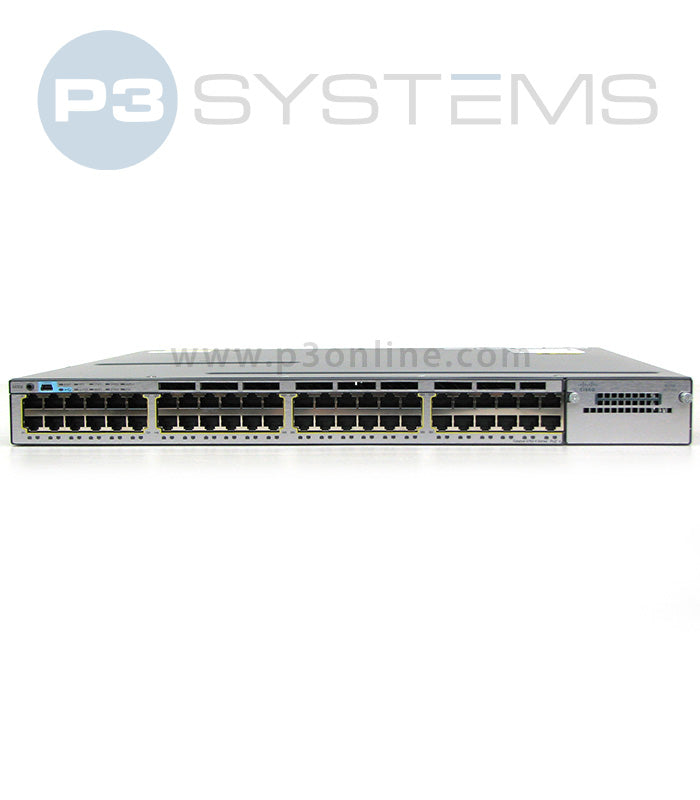

Cisco WS-C3750X-48PF-E - Catalyst 3750X 48-Port Gigabit PoE+ Switch (IP Services, Full PoE Budget)
The Cisco WS-C3750X-48PF-E is a stackable enterprise-class switch from the Catalyst 3750X Series, designed for secure, scalable, and resilient LAN access. Featuring 48 Gigabit PoE+ ports with a full PoE budget and advanced IP Services licensing, it delivers high-performance connectivity, robust security, and advanced routing for converged enterprise networks.
🔧 Key Specifications
- Ports: 48x Gigabit Ethernet RJ45 ports with IEEE 802.3af/at PoE+ support
- Uplinks: Modular network uplink option (supports 10G modules)
- Switching Capacity: 160 Gbps
- Forwarding Rate: 101.2 Mpps
- Stacking: Cisco StackWise Plus technology (up to 9 switches, 64 Gbps stack bandwidth)
- Memory: 256 MB RAM, 64 MB Flash
- VLAN Support: Up to 4094 VLAN IDs
- Layer Features: Advanced Layer 2 switching, full Layer 3 routing with IP Services (OSPF, EIGRP, BGP, PBR)
- Security: Port security, DHCP snooping, dynamic ARP inspection, ACLs, TrustSec
- Dimensions: 1.75 x 17.5 x 19.5 in (1RU rack-mountable)
- Weight: Approx. 16.7 lb
- Power Supply: Dual redundant, hot-swappable power supplies supported
- PoE Budget: Full power budget for high-density PoE deployments (supports maximum device load)
- Reliability: StackWise Plus resiliency, redundant fans, field-replaceable network modules
🧩 Ideal Use Cases
- Enterprise LAN access with large numbers of PoE-powered devices (IP phones, cameras, wireless APs)
- Branch or campus deployments requiring secure and scalable connectivity
- Advanced Layer 3 routing with IP Services for complex enterprise networks
- Unified wired and wireless management with integrated controller functionality
⚙️ Licensing & Expansion
The WS-C3750X-48PF-E runs Cisco IOS XE software with IP Services, enabling advanced Layer 3 routing protocols (OSPF, EIGRP, BGP) and policy-based routing. Expansion is enabled through modular uplink options and StackWise Plus technology, allowing seamless scalability and simplified administration.
