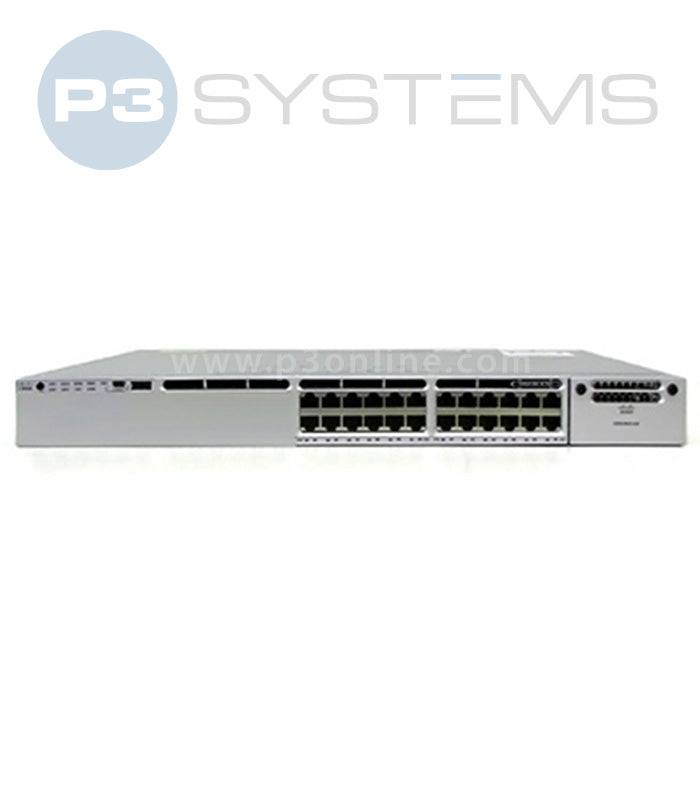

Cisco WS-C3850-24T-S - Catalyst 3850 24-Port Gigabit Switch (IP Base)
The Cisco WS-C3850-24T-S is a stackable enterprise-class switch from the Catalyst 3850 Series, designed to unify wired and wireless access on a single platform. Featuring 24 Gigabit Ethernet ports and IP Base licensing, it delivers secure, scalable, and resilient connectivity for enterprise LAN environments where PoE is not required.
🔧 Key Specifications
- Ports: 24x Gigabit Ethernet RJ45 ports (non-PoE)
- Uplinks: Modular uplink slot supporting C3850-NM-4-1G or C3850-NM-2-10G modules
- Switching Capacity: 92 Gbps
- Forwarding Rate: 68.4 Mpps
- Stacking: Cisco StackWise-480 technology (up to 9 switches, 480 Gbps stack bandwidth)
- Memory: 4 GB RAM, 2 GB Flash
- VLAN Support: Up to 4094 VLAN IDs
- Layer Features: Advanced Layer 2 switching, enhanced Layer 3 routing (IP Base: static routing, RIP, limited OSPF)
- Security: Port security, DHCP snooping, dynamic ARP inspection, ACLs, TrustSec
- Dimensions: 1.75 x 17.5 x 17.7 in (1RU rack-mountable)
- Weight: ~15.9 lb
- Power Supply: Dual redundant, hot-swappable power supplies supported
- Reliability: StackWise-480 resiliency, redundant fans, StackPower support for power sharing
🧩 Ideal Use Cases
- Enterprise LAN access where PoE is not required (desktop PCs, servers, printers)
- Branch or campus deployments requiring secure and scalable connectivity
- Unified wired and wireless management with Cisco DNA architecture
- Secure VLAN segmentation and access control with enhanced Layer 3 routing
⚙️ Licensing & Expansion
The WS-C3850-24T-S runs Cisco IOS XE software with IP Base features, supporting Layer 2 switching and enhanced Layer 3 routing (static routing, RIP, limited OSPF). Expansion is enabled through modular uplink options and StackWise-480 technology, allowing seamless scalability and simplified administration.
